Stainless Steel Pipe

Description

Stainless steel pipes are hollow, elongated cylindrical steel materials primarily used in various industries such as petroleum, chemical, medical, food, light industry, and mechanical instrumentation for industrial pipelines and mechanical structural components. Additionally, due to their lighter weight when bending and torsional strength are comparable, they are widely used in the manufacturing of mechanical parts and engineering structures. Stainless steel pipes are also commonly employed in the production of items like furniture and kitchen utensils.

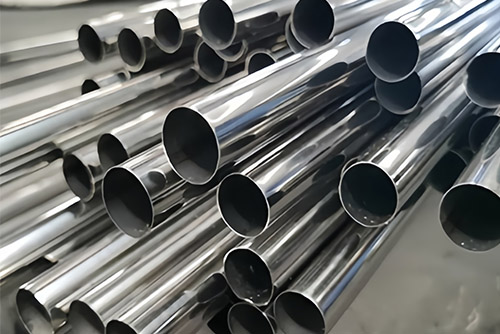

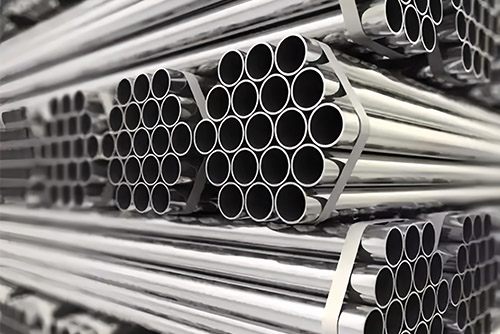

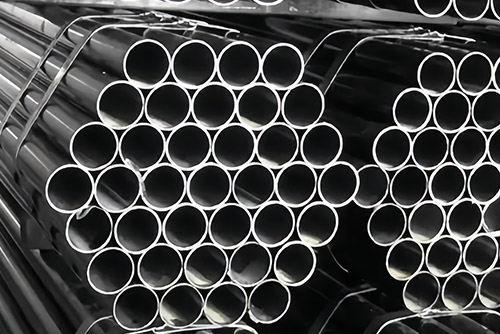

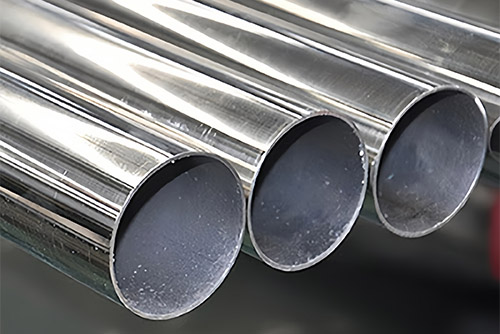

Stainless steel pipe
Standard	Food Grade Sanitary Tube: JIS G3447, KS D 3585, ASTM A270, EN 10357(DIN 11850), AS 1528.1, ISO 2037(NF A49-249)
	Heat exchanger tube: ASTM A249 / ASME SA249, GB / T 24593-2009, HG 20537.2
	Industrial pipe: ASTM A312, EN 10217-7, GB / T 12771-2008, HG 20537.3
	Drinking water tube: GB / T 19228
	Mechanical tube: ASTM A554, EN 10296-2
Size	Outer Diameter Range: 9.5~2000mm Thickness Range: 0.5~20mm (Size can be customized.) Length: Up to 18.3 meters per piece.
Shape Section	Round, square, rectangular

Grade	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0 .15	≤0 .75	5. 5-7. 5	≤0.06	≤ 0.03	3.5 -5.5	16.0 -18.0	-
202	≤0 .15	≤L.0	7.5-10.0	≤0.06	≤ 0.03	4.0-6.0	17.0-19.0	-
301	≤0 .15	≤L.0	≤2.0	≤0.045	≤ 0.03	6.0-8.0	16.0-18.0	-
302	≤0 .15	≤1.0	≤2.0	≤0.035	≤ 0.03	8.0-10.0	17.0-19.0	-
304	≤0 .0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	8.0-10.5	18.0-20.0	-
304L	≤0.03	≤1.0	≤2.0	≤0.035	≤ 0.03	9.0-13.0	18.0-20.0	-
309S	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0-15.0	22.0-24.0	-
310S	≤0.08	≤1.5	≤2.0	≤0.035	≤ 0.03	19.0-22.0	24.0-26.0
316	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	10.0-14.0	16.0-18.0	2.0-3.0
316L	≤0 .03	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0 -15.0	16 .0 -1 8.0	2.0 -3.0
321	≤ 0 .08	≤1.0	≤2.0	≤0.035	≤ 0.03	9.0 - 13 .0	17.0 -1 9.0	-
630	≤ 0 .07	≤1.0	≤1.0	≤0.035	≤ 0.03	3.0-5.0	15.5-17.5	-
631	≤0.09	≤1.0	≤1.0	≤0.030	≤0.035	6.50-7.75	16.0-18.0	-
904L	≤ 2 .0	≤0.045	≤1.0	≤0.035	-	23.0·28.0	19.0-23.0	4.0-5.0
2205	≤0.03	≤1.0	≤2.0	≤0.030	≤0.02	4.5-6.5	22.0-23.0	3.0-3.5
2507	≤0.03	≤0.8	≤1.2	≤0.035	≤0.02	6.0-8.0	24.0-26.0	3.0-5.0
2520	≤0.08	≤1.5	≤2.0	≤0.045	≤ 0.03	0.19 -0. 22	0. 24 -0 . 26	-
410	≤0.15	≤1.0	≤1.0	≤0.035	≤ 0.03	-	11.5-13.5	-
430	≤0.1 2	≤0.75	≤1.0	≤ 0.040	≤ 0.03	≤0.60	16.0 -18.0	-

Applications

1. Sanitary tubing: for food processing industry, beverage industry, sugar mill and so on;
2. Heat exchanger tube: condenser, boiler, super heater, evaporator and so on;
3. Industiral pipe: for petroleum delivery, gas delivery, petrochemical industry, wastewater treatment, drainage system, and so on;
4. Mechanical tube: handrail, railings, balustrade, hence and so on.

Standard

• A210
• A213
• A240
• A269
• A299
• A312
• JIS G3463
