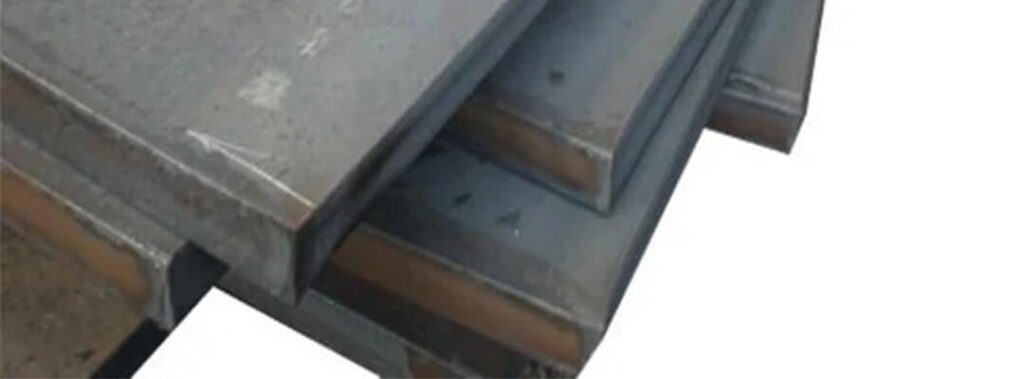

Pipeline Steel Plate

Description

Pipeline steel refers to a type of steel with special requirements used for transporting petroleum, natural gas, and other pipelines. Carbon content in pipeline steel is required to be low, and the strength of pipeline steel is ensured by increasing manganese content and adding trace elements such as niobium, titanium, vanadium, and molybdenum. For pipeline steel, in addition to the required strength and plasticity indices, a prominent feature is the demand for toughness indices, including impact energy, impact transition temperature, and toughness index of the API 5L pipeline steel plate. Furthermore, there are requirements for strain aging, weldability, stress corrosion, and other indicators for API 5L pipeline steel plates.

Standard	Class	Typical Steel Grades	Thickness (mm)
API 5L	API 5L PSL1	Grade A (L210)  Grade B (L245) API 5L X42 (L290) API 5L X46 (L320) API 5L X52 (L360) API 5L X56 (L390) API 5L X60 (L415) API 5L X65 (L450) API 5L X70 (L485)	≤52mm
	API 5L PSL2	Grade B (L245) API 5L X42 (L290) API 5L X46 (L320) API 5L X52 (L360) API 5L X56 (L390) API 5L X60 (L415) API 5L X65 (L450) API 5L X70 (L485) API 5L X80 (L555)	≤52m

Applications

1. API 5L pipeline steel plates are commonly used in the production of pipelines for the transportation of oil, natural gas, and other pipeline conveyance.
2. Pipeline steel can be divided into three types: high-latitude, high-sulfur zone, and subsea laying. Considering the comprehensive evaluation of development trends, laying conditions, main forms of damage, and reasons for the destruction of oil and gas transportation pipelines, it is not only necessary for pipeline steel to have good mechanical properties (thick-walled, high strength, high toughness, wear resistance), but it also needs to possess large diameter, weldability, resistance to low and high temperatures, corrosion resistance (CO2), resistance to seawater, HIC, SSCC performance, etc. These pipeline routes operate in challenging environments, are often long, and are difficult to maintain. Therefore, strict quality requirements are imposed, and API 5L pipeline steel is commonly used.

Standard

•  API 5L Gr. B
• X 42
• X 52
• X 60
• X 65
• X 70
• X 80
