Cor-Ten Steel Plate

Description

COR-TEN, known as weather-resistant steel, offers a robust solution to combat rust, which is a common challenge faced by conventional steel. When left exposed to the atmosphere without protective coatings, Corten steel naturally undergoes rust formation, much like ordinary steel. However, the alloying elements in COR-TEN facilitate the rapid development of a protective surface layer comprising finely-textured rust, effectively suppressing corrosion.

Grade	Specifications（mm)		Standard
	coils	Medium and heavy plate
Q235NH	1.5-19*800-1600	6-50*1600-3000	GB/T 4171-2008 or technology agreements
Q295NH	1.5-19*800-1600	6-50*1600-3000
Q355NH	1.5-19*800-1600	6-50*1600-3000
Q460NH	1.5-19*800-1600	6-50*1600-3000
Q550NH	1.5-19*800-1600	6-50*1600-3000
Q295GNH	1.5-19*800-1600
Q355GNH	1.5-19*800-1600
A606M	1.2-19*800-1600	6-50*1600-3250	ASTM A606M-2009 or technology agreements
A871M Gr60 A871M Gr65	1.2-19*800-1600	6-50*1600-3250	ASTM A871M-97 or technology agreements
A709M HPS50W	1.2-19*800-1600	6-50*1600-3250	ASTM A709M-2007 or technology agreements
A242M GrA A242M GrB A242M GrC A242M GrD	1.2-19*800-1600	6-50*1600-3250	ASTM A242M-03a or technology agreements
A588M GrA A588M GrB A588M GrC A588M GrK	1.2-19*800-1600	6-50*1600-3250	ASTM A588M-01 or technology agreements

Advantage

1. Green and environmentally friendly There is no need for initial painting, which can reduce the use of fire-retardant coatings and fire-retardant coatings, thereby reducing pollution, shortening the construction period, reducing costs and reducing maintenance. It is an economical steel with "green environmental protection" and sustainable development;

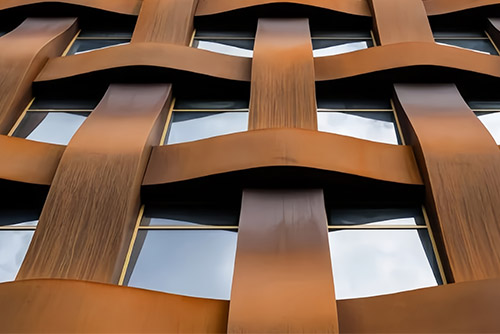

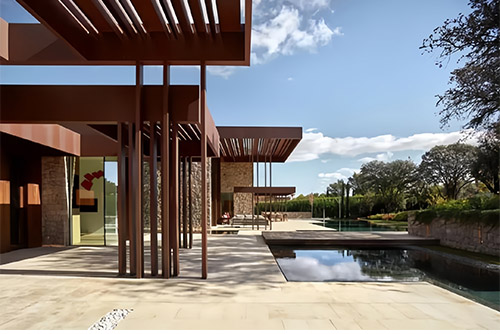

2. High visual expression Weathering steel plates will change over time, and their color brightness and saturation are higher than those of ordinary structural materials, so they are easier to stand out against the background of garden plants;

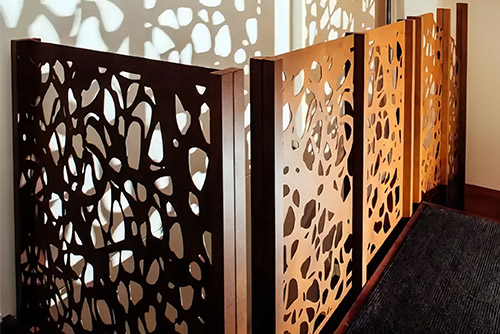

3. Strong body shaping ability Weathering steel plates are relatively easy to shape into rich and varied shapes and can maintain excellent integrity;
4. Good spatial definition ability Thin weather-resistant steel plates are used to clearly and accurately separate the space, making the site concise and bright.

Chemical Composition

Grade	Chemical composition%
	C	Si	Mn	P	S	Cu	Cr	Ni
Q235NH	≤ 0.12	0.10～ 0.40	0.20～ 0.60	≤ 0.030	≤ 0.030	0.25～ 0.55	0.40～ 0.80	≤ 0.65
Q295NH	≤ 0.15	0.10～ 0.50	0.10～ 1.00	≤ 0.030	≤ 0.030	0.20～ 0.55	0.40～ 0.80	≤ 0.65
Q355NH	≤ 0.16	≤ 0.50	0.50～ 1.50	≤ 0.030	≤ 0.030	0.20～ 0.55	0.40～ 0.80	≤ 0.65
Q460NH	≤ 0.12	≤ 0.65	≤ 1.50	≤ 0.025	≤ 0.030	0.20～ 0.55	0.30～ 1.25	0.12～ 0.65
Q550NH	≤ 0.16	≤ 0.65	≤ 2.0	≤ 0.025	≤ 0.030	0.20～ 0.55	0.30～ 1.25	0.12～ 0.65
Q295GNH	≤ 0.12	0.10～ 0.40	0.20～ 0.50	0.07～ 0.12	≤ 0.020	0.25～ 0.45	0.30～ 0.65	0.25～ 0.50
Q355GNH	≤ 0.12	0.20～ 0.75	≤ 0.10	0.07～ 0.15	≤ 0.020	0.25～ 0.55	0.30～ 1.25	≤ 0.65
A606M Type 2	≤ 0.22		≤ 1.25		≤ 0.040	≥0.20
A606M Type 4	≤ 0.22		≤ 1.25		≤ 0.040	≥0.20
A871M Gr60 A871M Gr65	0.19	0.30～0.65	0.80～1.35	0.040	0.050	0.25～0.40	0.40～0.70	0.40
A709M 50W	0.19	0.80～1.25	0.30～0.65	0.040	0.050	0.25～0.40	0.40～～0.65	0.40
A242M GrA A242M GrB A242M GrC A242M GrD	0.15	-	1.00	0.15	0.050	0.20	-	-

Grade	Thicknessmm	Tensile test			180°Bending test b≥20mm
		Yield strengthReL (N/mm2)	Tensile strengthRm (N/mm2)	ElongationA %
Q235NH	≤16	≥235	360～510	≥25	d=a
	＞16～40	≥225		≥25	d=2a
	＞40～60	≥215		≥24	d=3a
Q295NH	≤16	≥295	430～560	≥24	d=a
	＞16～40	≥285		≥24	d=2a
Q355NH	≤16	≥355	490～630	≥22	d=a
	＞16～40	≥345		≥22	d=2a
	＞40～60	≥335		≥21	d=3a
Q460NH	≤16	≥450	≥550	≤6	d=a
	＞16～40			＞6～16	d=2a
	＞40～60			＞16	d=3a
Q550NH	≤16	≥550	620～780	≤6	d=a
	＞16～40			＞6～16	d=2a
	＞40～60			＞16	d=3a
Q295GNH	≤16	≥295	430～560	≤6	d=a
	＞16～40			＞6～16	d=2a
				＞16	d=3a
Q355GNH	≤16	≥355	490～630	≤6	d=a
	＞16～40			＞6～16	d=2a
				＞16	d=3a
A606M		≥340	≥480	≥22	-
A871M Gr60		≥415	≥520	≥18	d=2.5a
A871M Gr65		≥450	≥550	≥17	d=2.5a
A709M 50W		≥345	≥485
A242M GrA A242M GrB A242M GrC A242M GrD		≥315	≥460

Standard

• A588
• SA588
• EN 10025-5
• EN 10155
• TB/T 1979
• GB/T 4171
• JIS G3114.
